In the manufacturing of cylindrical cardboard tubes, two primary techniques dominate the landscape: spiral winding and convolute (or parallel) winding. While they both produce a cylindrical shape from paper and adhesive, the methods themselves are fundamentally different, resulting in products with unique physical properties and ideal applications. For any business looking to source a high-quality cardboard tube, understanding these differences is essential for making the right choice for their specific packaging or industrial needs.
At Hallpack, a premier manufacturer in China, we utilize both technologies to provide our clients with the best possible cardboard cylinder packaging solutions. In this detailed guide, we will break down the mechanics, the strengths, and the weaknesses of each method to help you decide which type of tube is best for your project.
The spiral-wound method is the most common and versatile way to produce cylindrical cardboard tubes. It is a continuous manufacturing process that is highly efficient and capable of producing tubes in a vast array of sizes.

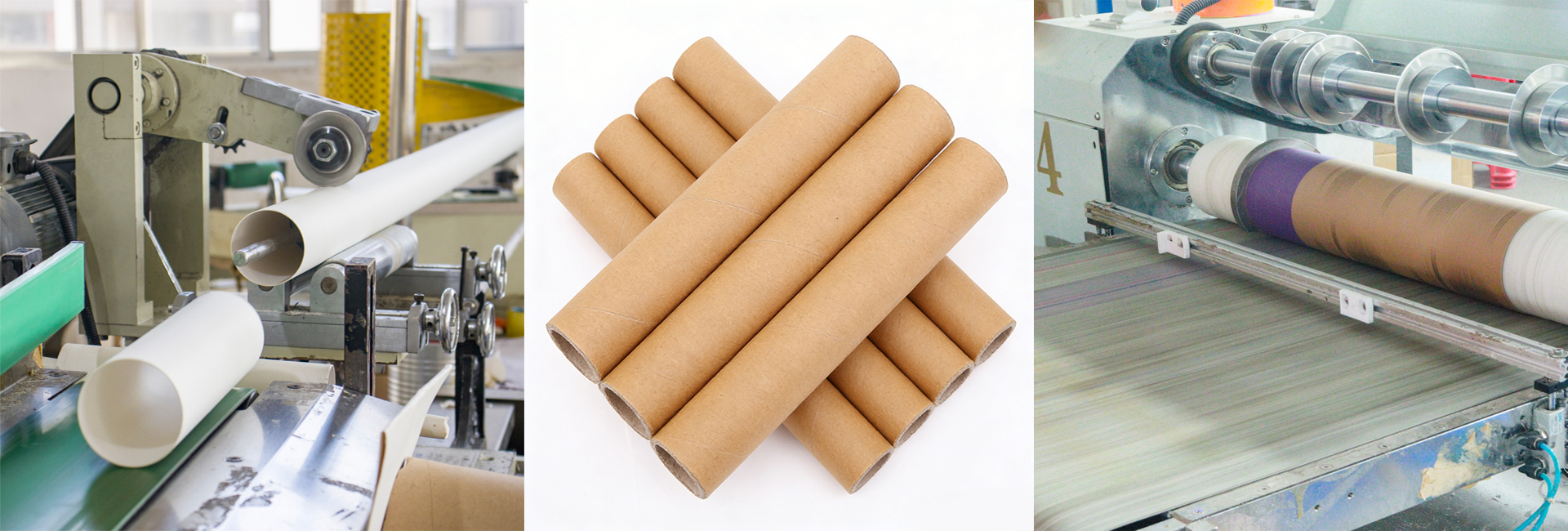

In a spiral-winding machine, multiple narrow strips of paper, known as "plies," are pulled from large rolls. Each ply is passed through a bath of water-based adhesive and then wound at an angle (a spiral) around a stationary cylindrical mandrel. The number of plies used determines the thickness of the tube wall. As the mandrel remains fixed, a rotating belt pulls the wound paper forward, creating a continuous, never-ending cardboard tube.
Once the tube reaches a certain length, it is cut by a high-speed automated knife. This process allows for extremely fast production and the ability to cut the tubes to almost any length specified by the client.
1. Continuous Production: This allows for high-volume orders of cylindrical cardboard tubes to be completed quickly and cost-effectively.
2. Uniform Wall Thickness: Because each ply is a consistent width and thickness, the resulting tube has a very uniform wall.
3. Versatility: By simply changing the mandrel and the width of the paper plies, manufacturers can easily produce a wide range of diameters.
4. Smooth Exterior: For cardboard cylinder packaging, the outer ply can be a pre-printed decorative paper, creating a seamless and beautiful finish.
Convolute winding, also known as parallel winding, is a different beast entirely. It is a batch-based process that is often used for specialized, heavy-duty applications.
In the convolute process, a single large sheet of paper (the width of which determines the length of the final tube) is wound directly onto a rotating mandrel. The paper is fed "parallel" to the mandrel, meaning each layer sits directly on top of the one below it. Adhesive is applied to the paper as it is wound, creating a solid, multi-layered structure.
Once the desired wall thickness is achieved, the winding stops, and the finished cardboard tube is slid off the mandrel. Because this is not a continuous process, the length of the tube is limited by the width of the paper sheet and the size of the mandrel itself.
1. Exceptional Hoop Strength: Because the fibers of the paper are oriented in a parallel fashion around the circumference of the tube, convolute-wound cylindrical cardboard tubes have incredible "hoop strength." This makes them resistant to internal pressure or high-tension winding.
2. High Vertical (Axial) Strength: The parallel structure also provides excellent resistance to being crushed from the ends.
3. Limited Length: The batch nature of the process means that convolute tubes are generally shorter than spiral-wound tubes.
4. Seamless Internal Surface: For certain industrial applications, the inner surface of a convolute tube can be smoother and more consistent than a spiral-wound one.
To help you decide, let's look at how these two types of cylindrical cardboard tubes compare across several key metrics.
Spiral-Wound: Excellent overall strength, particularly radial crush resistance. It is the industry standard for most shipping and mailing applications.
Convolute-Wound: Superior hoop strength. If you are winding heavy material like wire or heavy textiles under extreme tension, a convolute-wound cardboard tube is often the better choice.
Spiral-Wound: Offers good accuracy, but there can be very slight variations in the "spiral" seam on the inside of the tube.
Convolute-Wound: Provides extremely tight tolerances for the inside diameter (ID). This is critical if the cylindrical cardboard tube must fit precisely over a mechanical shaft.
Spiral-Wound: The king of retail packaging. The ability to use a continuous "wrap" ply allows for 360-degree, high-resolution printing with no visible vertical seam. Most premium cardboard cylinder packaging is spiral-wound.
Convolute-Wound: Usually has a visible vertical seam where the paper sheet ends. While this can be covered with a label, it is generally less aesthetically pleasing for high-end retail use.
Spiral-Wound: Far faster and more cost-effective for medium to high-volume production. The continuous process minimizes downtime and labor.
Convolute-Wound: Slower and more labor-intensive, making it more expensive per unit. It is typically reserved for specialized applications where its unique strength properties are required.
At Hallpack, we help our clients navigate these choices every day. Here are our general recommendations:
If you need cores for winding paper, plastic film, or light textiles, spiral-wound cylindrical cardboard tubes are the way to go. They offer more than enough strength for these applications and are much more affordable.
If your tube will be subjected to extreme internal pressure or needs to be used as a structural component in a machine, the superior hoop strength of a convolute-wound cardboard tube is worth the extra cost.
For almost all consumer goods—from cosmetics and tea to apparel and whiskey—spiral winding is the superior choice. The aesthetic finish, the ability to add luxury coatings, and the cost-efficiency make it the perfect platform for building a brand. At Hallpack, we specialize in high-end, custom-printed spiral cylindrical cardboard tubes that redefine the unboxing experience.
Regardless of the winding method, the quality of a cardboard tube depends on the materials used.
Paper Choice: Using high-density kraft paper is essential for strength. For cardboard cylinder packaging, we often use white SBS (Solid Bleached Sulfate) board for the outer layer to ensure vibrant print colors.
Adhesive Quality: At Hallpack, we use specialized water-based adhesives that provide a rigid, permanent bond. For food-grade applications, our adhesives are non-toxic and compliant with international safety standards.
By carefully selecting the right combination of paper, adhesive, and winding method, we ensure that every cylindrical cardboard tube leaving our factory in China meets the highest standards of quality and performance.
At www.hallpack.net, we believe that every brand deserves a unique packaging solution. We offer extensive customization for both spiral and convolute cylindrical cardboard tubes:
Printing: Offset and digital printing for vibrant, high-resolution graphics.
Finishing: Foil stamping, embossing, and UV coatings for a luxury feel.
Liners: Moisture-proof, grease-proof, and food-grade linings to protect your product.
Caps: Metal, plastic, or fully biodegradable cardboard caps to finish the look.
For cardboard cylinder packaging, the sky is the limit. Whether you need a small, delicate tube for a piece of jewelry or a large, robust tube for a luxury garment, our spiral-winding process can be tailored to your exact specifications.
Based in the heart of China's manufacturing sector, Hallpack is uniquely positioned to offer a wide range of cylindrical cardboard tubes. Our facility is equipped with state-of-the-art spiral winding lines and precision convolute winding machines. This dual capability allows us to serve a diverse range of industries, from heavy manufacturing to luxury retail.
We take quality control seriously. Every cardboard tube we produce undergoes rigorous testing to ensure it meets our clients' strength and dimensional requirements. Our commitment to excellence has made us a trusted partner for brands around the world looking for reliable, sustainable, and beautiful cardboard cylinder packaging.
While the difference between spiral and convolute winding may seem technical, it has a direct impact on the performance and cost of your packaging. For most retail and shipping needs, the spiral-wound cardboard tube is the undisputed champion. Its combination of strength, aesthetic potential, and cost-efficiency is hard to beat. However, for specialized industrial tasks that require extreme resistance to internal pressure, the convolute-wound tube remains an essential tool.
At Hallpack, we are here to help you make the right choice. Visit us at www.hallpack.net to explore our full range of products and speak with one of our experts. Whether you need a high-strength industrial core or a stunning piece of cardboard cylinder packaging, we have the technology, the expertise, and the passion to deliver the perfect solution.
Feature | Spiral-Wound | Convolute (Parallel) |
Manufacturing | Continuous, multi-ply | Batch-based, single sheet |
Strength | Excellent Radial Crush | Superior Hoop Strength |
Production Speed | High | Low |
Cost Per Unit | Lower | Higher |
Aesthetics | Seamless, perfect for printing | Visible vertical seam |
Common Use | Mailing, retail packaging, cores | High-pressure cores, structural parts |
Choosing the right cylindrical cardboard tubes doesn't have to be a challenge. With the right partner like Hallpack, you can be sure that your packaging is as well-engineered as the product inside it. Discover the Hallpack difference today at www.hallpack.net.
